15kW Double Roller Granulator Machine Press High Pressure For Dry Granulation

  • 1
  • 2
  • 3

Model Number : DZJ-I-1.0

Place of Origin : China

MOQ : 1

Price : Negotiable

Capacity (t/h) : 1~1.5

Power (kW) : 15kW

Usage : Making Fertilizer Granules,to make orgainc fertilizer granule,organic fertilizer machine,Making Organic Fertilizer Pellets,Fertilizer and feed process palnt

Product name : Gypsum extruder granulator machine,FL-60 Organic Fertilizer Granulation Machine,Compost fertilizer granule granulator machine,Organic fertilizer making machine,Fertilizer Production Equipment

Material : State Standard Carbon Steel,Stainless Steel,sus304/316

Installation : Under Engineer Guide,Guide

Packaging Details : with wooden boxes in container

Delivery Time : 30 work days

Payment Terms : T/T

Supply Ability : to be determined

Contact Now

Roller Extrusion Granulator – Dry-Type Granulation Equipment
The Double Roller Extrusion Granulator is an advanced dry-type granulation system that transforms powdery, crystalline, or micro-granular raw materials into dense, high-strength pellets through high-pressure extrusion between two counter-rotating rollers. This innovative equipment achieves direct granulation via the physical bonding force of materials themselves, eliminating the need for water addition, drying processes, or chemical binders.
Energy-saving, environmentally friendly, and cost-effective production with consistent particle quality and forming rates exceeding 92%.
Key Technical Features
  • Precision-adjustable roller pressure range: 0.5-20MPa
  • Customizable roller surface patterns: smooth, grooved, or tooth-shaped
  • Adaptable to diverse material properties and pellet specifications
  • Suitable for both small-batch R&D and large-scale continuous production
  • Production capacity range: 1-30t/h
Application Scope
Optimized for dry-type, binder-free granulation across multiple industries:
  • Fertilizer Industry: Granulation of compound fertilizers (NPK), organic-inorganic mixed fertilizers, ammonium sulfate, potassium chloride, and slow-release fertilizer raw materials
  • Chemical Industry: Processing of inorganic salts, chemical intermediates, catalyst powders, and detergent powders
  • Mining & Metallurgy: Pelletization of iron ore concentrate, coal powder, metallurgical slags, and non-ferrous metal ore powders
  • Building Materials: Granulation of cement clinker, fly ash, limestone powder, and refractory materials
  • Food & Pharmaceutical: Production of food additives, pharmaceutical excipients, and health product granules (with food-grade stainless steel configuration)
Performance Highlights
  • High Pressure & Dense Pellets: Roller pressure up to 20MPa produces pellets with bulk density 1.2-1.8t/m³ and high mechanical strength (compressive strength ≥3MPa)
  • Low Powder Content: Minimal dust generation suitable for long-distance transportation and storage
  • Flexible Particle Customization: Adjustable to produce pellets of different shapes (cylindrical, oval, irregular) and sizes (1-10mm)
  • Quick Roller Replacement: Supports multi-specification production without complex debugging
Technical Specifications
Model DZJ-I-1.0
Capacity (t/h) 1~1.5
Power (kW) 15kW
Pressure Roller Size Φ150*220
Feed Size (mm) ≤0.5mm
Granule Diameter (mm) Φ2.5~Φ10
Reducer Type/Hardened Gear Series ZQH350/ZLY160
Material Moisture 2%~5%
15kW Double Roller Granulator Machine Press High Pressure For Dry Granulation

Product Tags:

15kW double roller granulator machine



High Pressure double roller granulator machine



15kW roller press granulator


China 15kW Double Roller Granulator Machine Press High Pressure For Dry Granulation wholesale

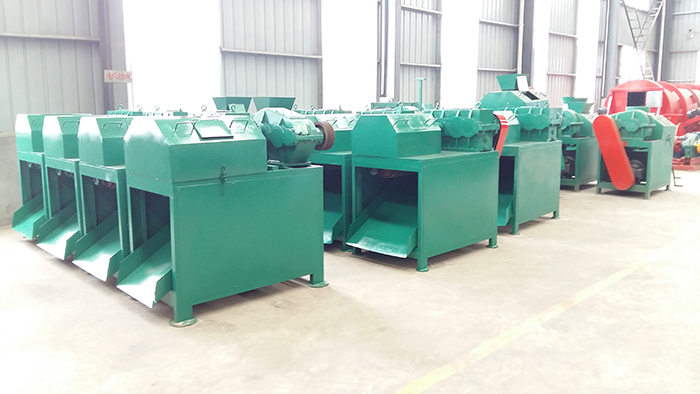

15kW Double Roller Granulator Machine Press High Pressure For Dry Granulation Images
